What is the principle of usb to serial port?

**What is the principle of USB to serial port?** USB to serial port conversion, also known as a USB-to-serial adapter, works by translating USB signals into traditional serial communication protocols. This process involves several key components and steps: 1. **Protocol Conversion**: USB uses a high-speed, packet-based protocol, while serial ports typically use asynchronous, character-based communication. The chip inside the adapter handles this protocol translation. 2. **Level Shifting**: USB operates at 5V logic levels, whereas many serial devices (like RS-232) require higher voltage levels (e.g., ±12V). The converter ensures proper voltage level matching for compatibility. 3. **Chip-Based Implementation**: Most USB-to-serial adapters rely on a specific integrated circuit (IC), such as the Prolific PL2303 or FTDI FT232. These chips act as the bridge between the USB interface and the serial communication. 4. **Driver Support**: To enable communication, these chips require specific drivers to be installed on the host computer. Without the correct driver, the device may not function properly. The most common design includes a USB Type-A connector on one end and a DB9 serial port on the other. Inside, the USB interface connects to the chip, which then communicates with the serial port through a series of signal lines like TXD, RXD, and GND. Below is a typical schematic representation of a USB-to-serial adapter:

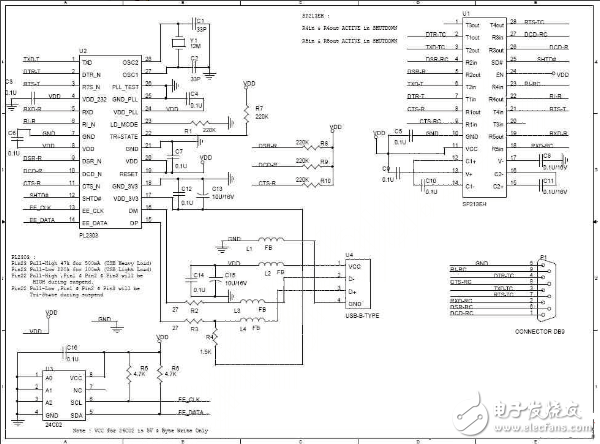

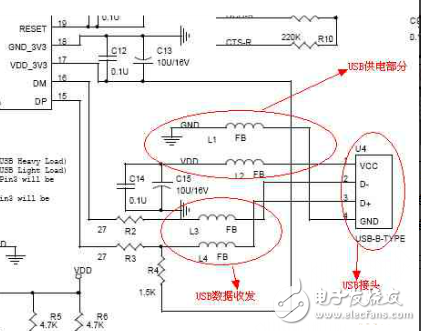

The USB interface itself consists of three main parts: - **USB Connector**: Provides the physical connection to the host device via a USB cable. - **Power Supply**: The adapter draws power directly from the USB port, eliminating the need for an external power source. - **Data Transceiver**: Handles the actual data exchange between the USB interface and the internal chip (such as the PL2303). Here's a detailed breakdown of the USB interface:

In summary, a USB-to-serial converter acts as a bridge between modern USB interfaces and older serial communication standards. It relies on specialized chips, proper drivers, and careful signal management to ensure reliable and compatible data transfer. Whether you're connecting a legacy device or working with embedded systems, understanding how this conversion works can help you troubleshoot and optimize your setup.
