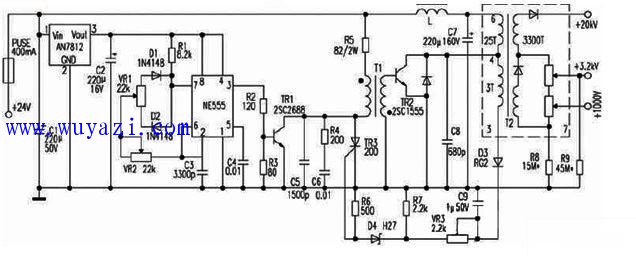

/> The picture shows the 24V power supply pure flat display high voltage power supply. The NE555 constitutes a pulse generator, and the potentiometer VR2 can be adjusted to generate a pulse having a frequency of about 20 kHz, and the potentiometer VR1 can adjust the pulse width. TR1 is the push stage, and the pulse transformer T1 uses reverse polarity excitation, that is, TR2 is turned off when TR1 is turned on, TR2 is turned on when TR1 is turned off, and D3, C9, VR3, R7 and D4, R6, and TR3 form a high voltage protection circuit. VR2 is used to adjust the frequency, and VR2 can be adjusted to adjust the high voltage. VR2 uses precision adjustable resistors. T2 can be used with color TV output transformers. This circuit selects the line output transformer of Toyo SE-1438G series 35cm (14 inch) color TV. The anode voltage of this transformer can reach 20kV, and then the resistance value of R8 is appropriately selected so that the accelerating voltage is +1000V and the resistance of R9 makes focus. The pole voltage is +3.2kV. The entire part is packaged in an aluminum case with an aluminum case grounded to reduce circuit interference. </p> </div> </div> <div class="tech-detail-share"> <!-- Baidu Button BEGIN --> <div class="bdsharebuttonbox"> <a href="#" class ="bds_qzone" data-cmd="qzone" title="Share to QQ space"></a> <a href="#" class="bds_tsina" data-cmd="tsina" title="Share to Sina Wei Bo"></a> <a href="#" class="bds_weixin" data-cmd="weixin" title="Share to WeChat"></a> <span>Share to:</span> </ Div> <script>window._bd_share_config = { "common": { "bdSnsKey": {}, "bdText": "", "bdMini": "1", "bdMiniList": false, "bdPic": "", "bdStyle": "2", "bdSize": "16" }, "share": {} }; with (document) 0[(getElementsByTagName(
